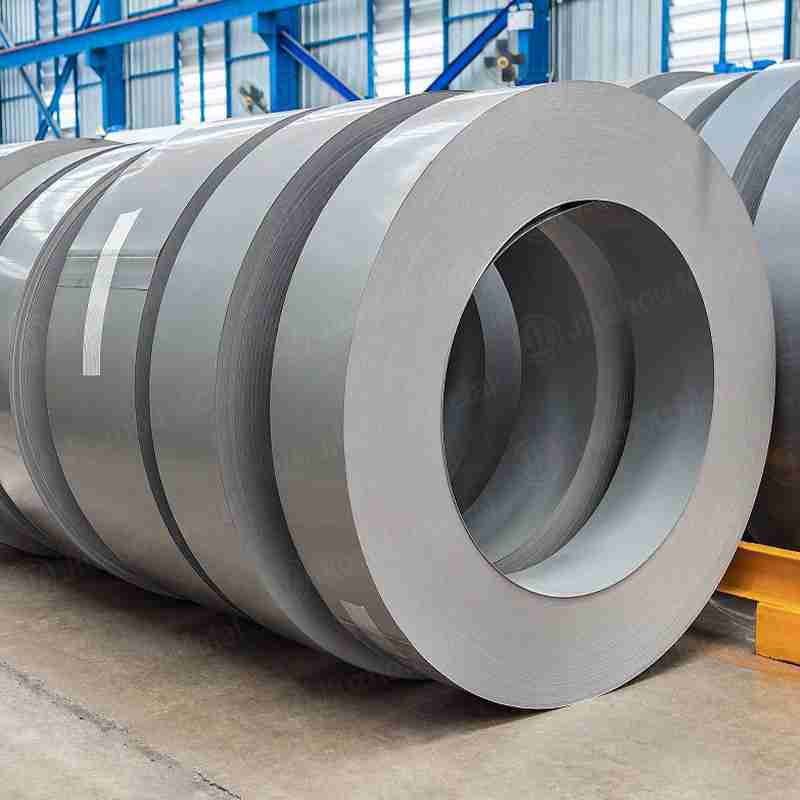

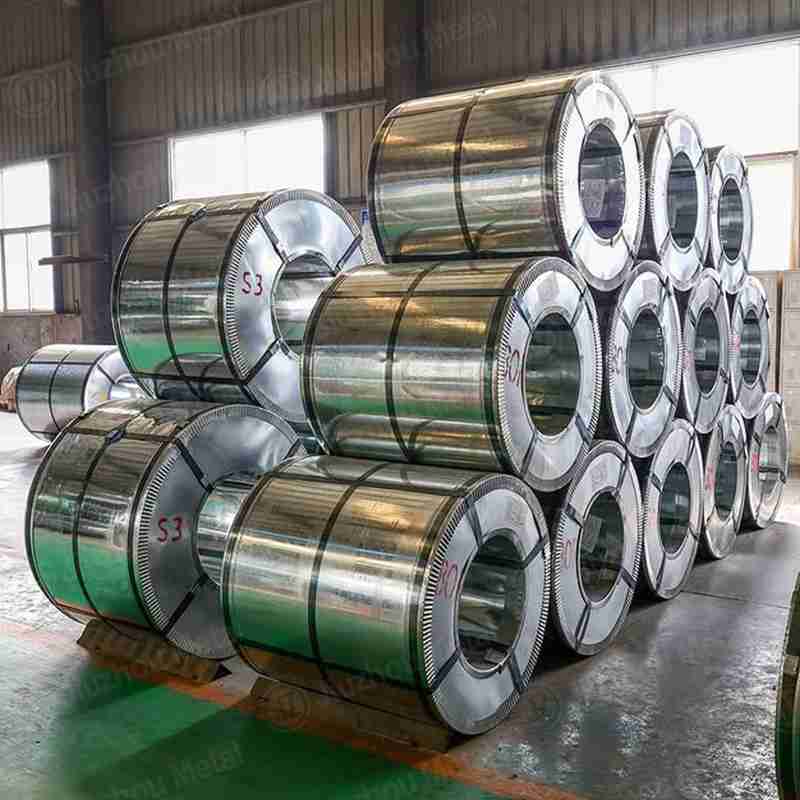

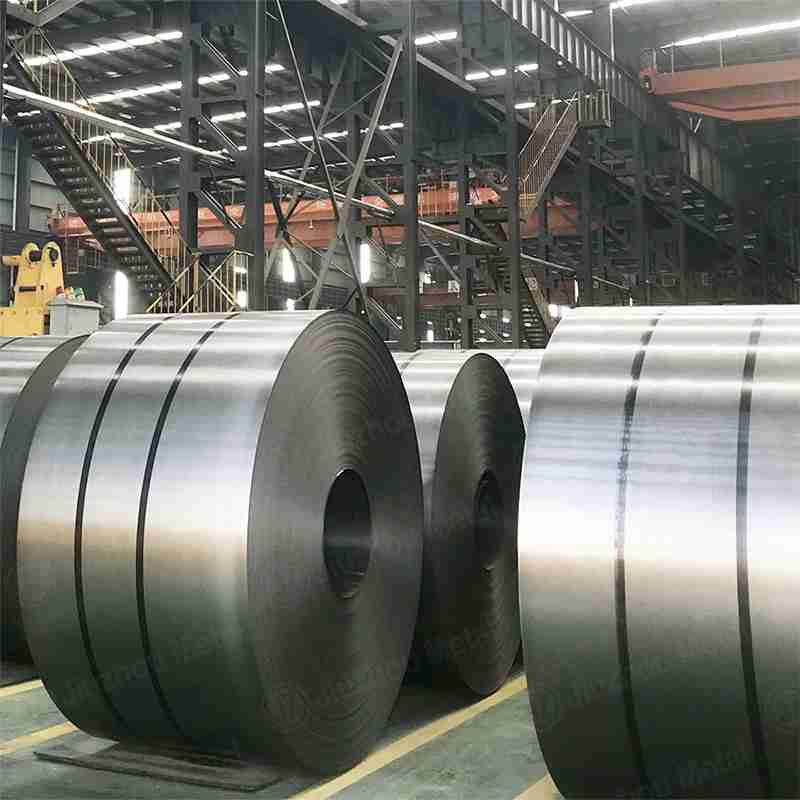

Non-Oriented Electrical Steel Fully Processed
Non-Oriented Electrical Steel Fully Processed for sale. Electrical steels are divided into NGO (Non Grain Oriented) and GO (Grain Oriented) grades according to the magnetic behavior.
COLD ROLLED FUL LY PROCE SSED ELECTRICAL STEELS
Cold rolled fully-processed electrical steels may be delivered without insulation or insulated on both sides with insulation in order to achieve desired properties for various fields of application (higher surface
insulation resistance, improvement of punch ability and corrosion resistance, annealing).
FUL LY PROCE SSED ELEC TRICAL STEELS-DINAMO ( G UA R ANTEED VA LU E S)
| Grade EN 10106 | Nominal thickness (mm) | Specific total loss 1), 4)
(max.) |
Magnetic polarisation (min.) for field strength A/m 2),4) | Stacking factor
(min.) |
Density
(assumed)
(kg/dm3) |
|||
| at 1.5T (W/kg) | at 1T3) (W/kg) | 2500 (T) | 5000 (T) | 10000 (T) | ||||
| M270-35A |
0,35 |
2,7 | 1,10 | 1,49 | 1,60 | 1,70 |
0,95 |
7,65 |
| M300-35A | 3,0 | 1,20 | 1,49 | 1,60 | 1,70 | 7,65 | ||
| M330-35A | 3,3 | 1,30 | 1,49 | 1,60 | 1,70 | 7,65 | ||
| M310-50A |
0,50 |
3,1 | 1,25 | 1,49 | 1,60 | 1,70 |
0,97 |
7,65 |
| M330-50A | 3,3 | 1,35 | 1,49 | 1,60 | 1,70 | 7,65 | ||
| M350-50A | 3,5 | 1,50 | 1,50 | 1,60 | 1,70 | 7,65 | ||
| M400-50A | 4,0 | 1,70 | 1,53 | 1,63 | 1,73 | 7,70 | ||
| M470-50A | 4,7 | 2,00 | 1,54 | 1,64 | 1,74 | 7,70 | ||
| M530-50A | 5,3 | 2,30 | 1,56 | 1,65 | 1,75 | 7,70 | ||
| M600-50A | 6,0 | 2,60 | 1,57 | 1,66 | 1,76 | 7,75 | ||
| M700-50A | 7,0 | 3,00 | 1,60 | 1,69 | 1,77 | 7,80 | ||
| M800-50A | 8,0 | 3,60 | 1,60 | 1,70 | 1,78 | 7,80 | ||
| M350-65A |
0,65 |
3,5 | 1.50 | 1,49 | 1,60 | 1,70 |
0,97 |
7,60 |
| M400-65A | 4,0 | 1,70 | 1,52 | 1,62 | 1,72 | 7,65 | ||
| M470-65A | 4,7 | 2,00 | 1,53 | 1,63 | 1,73 | 7,65 | ||
| M530-65A | 5,3 | 2,30 | 1,54 | 1,64 | 1,74 | 7,70 | ||
| M600-65A | 6,0 | 2,60 | 1,56 | 1,66 | 1,76 | 7,75 | ||
| M700-65A | 7,0 | 3,00 | 1,57 | 1,67 | 1,76 | 7,75 | ||
| M800-65A | 8,0 | 3,60 | 1,60 | 1,70 | 1,78 | 7,80 | ||
- In accordance with IEC 60404-8-4 and EN 10106, the values are specified and guaranteed for magnetic polarisation at 5 T unless otherwise agreed. Non-Oriented Electrical Steel Fully Processed for sale.
- In accordance with IEC 60404-8-4 and EN 10106, the values are specified and guaranteed for field strength at 2500 A/m, 5000 A/m and 10000 A/m unless otherwise agreed
- These are only informative values
- Valid for testing in C. field in the 25 cm Epstein frame according to IEC 60404-2
